Museum : Bruce Duncan's Modular
.

. .
. . . . .
. Bruce Duncan's Modular



Search the Synthmuseum.com Classifieds for this manufacturer.

. .

Bruce Duncan's Modular

. . .
. Manufacturer:
Bruce Duncan

Model:
01A

Production period:


Quantity produced:
1

.
. . .

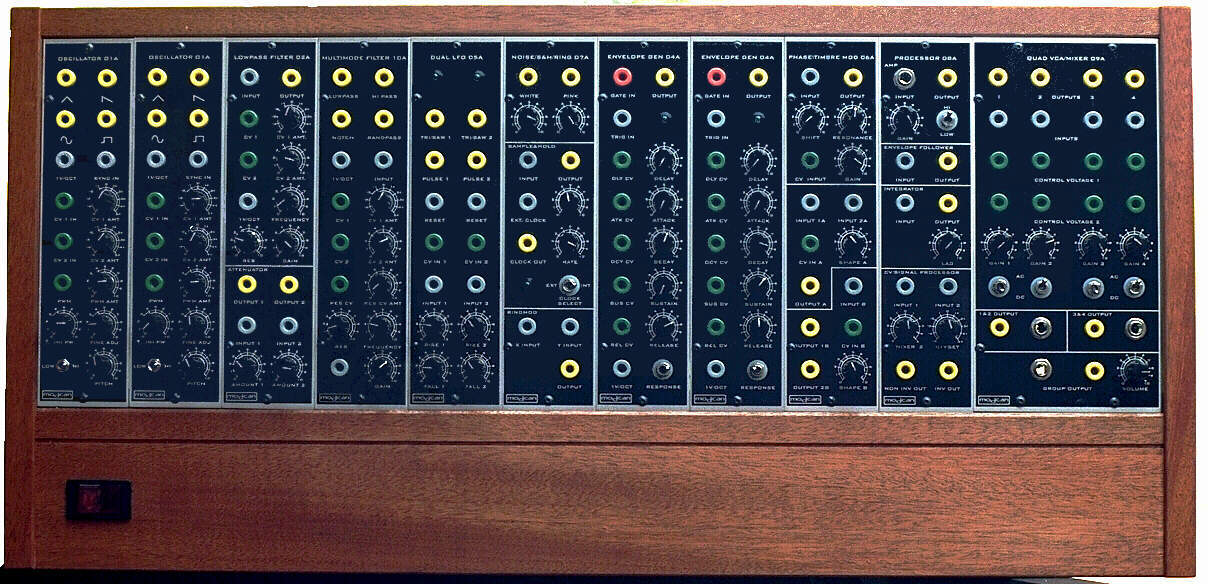

Bruce Duncan's Modular

Bruce Duncan's Modular

owner: Bruce Duncan, Toronto, Ontario, Canada
serial #: 000001

MODULES

  • 2 VCO -sine/saw/triangle and variable width pulse waveforms
  • 1 Lowpass filter - 4 pole transistor ladder of the Moog type
  • 1 Multimode filter -hp/lp/bp and notch responses with cv resonance
  • 2 DADSR-cv control for all stages
  • 1 Dual LFO - variable triangle/saw and pulse width waveforms
  • 1 S&H/Noise Source/Ringmodulator
  • 1 Phase Shifter/Timbre Modulator-1080 degree phase shift with resonance
  • 1 Amplifier/Integrator/Envelope Follower/Cv Mixer
  • 1 Quad VCA-linear response vca is switchable for AC and DC applications
  • All circuits are discreet (no SSM or Curtis)

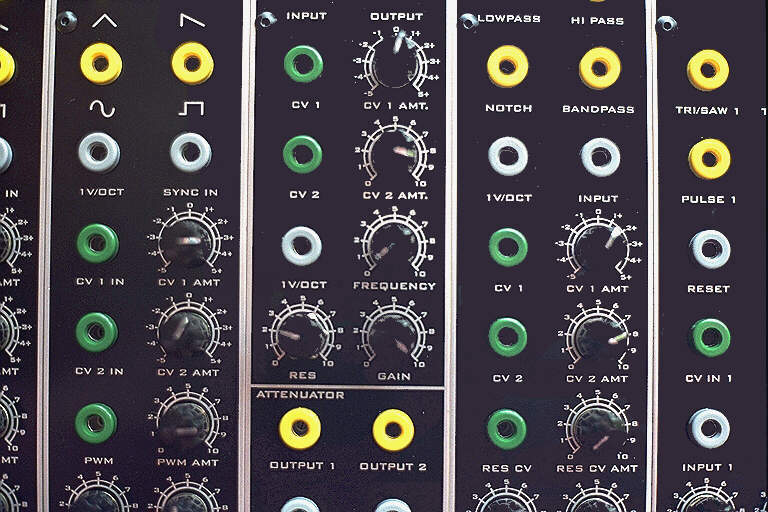

The case is made from Mahogany. The modules are 9x2 1/4" with 1/8th inch aluminum panels black anodized with clear (aluminum) text. This is a durable finish as there is no paint or screening to chip off and it provides a completely smooth surface. The jacks are standard banana with yellow for outputs, grey for inputs and green for cv inputs. ------Bruce Duncan



. . . . .
