EML Electrocomp 101

. . .
. Manufacturer:
Electronic Music Laboratories, Vernon, CT, USA

Model:
Electrocomp 101

Production period:
1972-82

Quantity produced:
1,000

Famous Fingers
Who played this instrument?

.
. . .

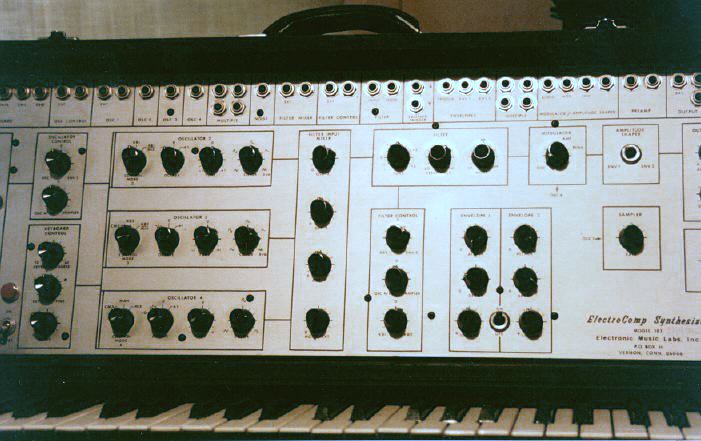

EML Electrocomp 101

above photo from the collection of The New England Synthesizer Museum, David Hillel Wilson, Curator

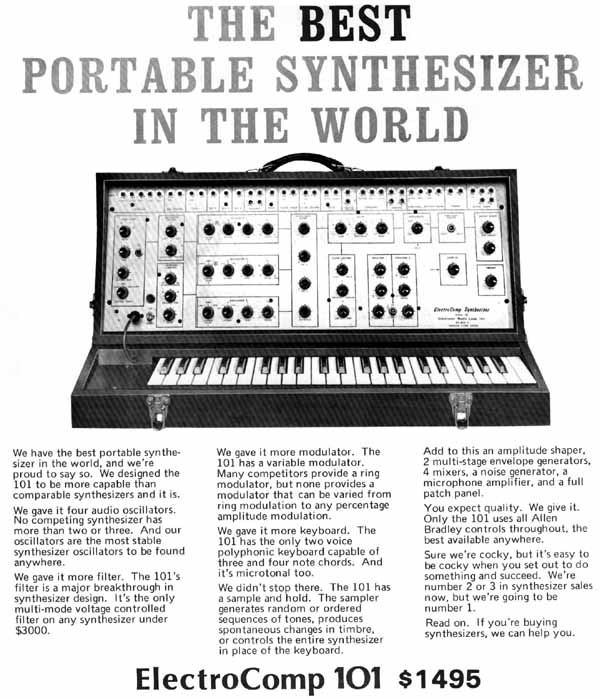

EML Electrocomp 101 brochure courtesy of Kevin Lightner

"EML's most popular synthesizer, the 101, followed the EML 100, which is rare. The 101 has 4 VCOs, a 12 dB/oct VCF, a VCA/Ring Modulator, 2 ADS Envelopes (similar to those on the MiniMoog), a Sample and hold with its own clock, a mic preamp, and a 2-voice 44 note keyboard.

"Several things make the EML 101 stand out. First, they used center tapped pots and clever circuitry to produce a continuously variable waveform control for their VCOs. Two VCOs actually crossfade from triangle through square through ramp to double octave ramp. Similarly, the filter is continuously variable from low pass through band pass to high pass (Not to be confused with the Oberheim SEM's filter, which goes from low pass through notch to high pass). Also, it has a keys/octave control, shared only with the Moog Sonic V/VI and the ARP 2500 and 2600. This lets you easily set up any equally tempered scale. For example, you can get 19 notes to the octave, or Wendy Carlos Alpha or Beta, just by turning the knob to the right place. Finally, each module's inputs and outputs are made available at a patch bay (similar to the MS-10 and MS-20), allowing use as a modular synthesizer." ------ Dave Wilson



Famous Fingers
Who Played This Instrument?

Robin Amos of The Girls and then with Cul-de-Sac, Pat Crowley of Sylvester, Brian Kehew and Roger Manning of The Moog Cookbook, Sasha Frere-Jones of Ui, Tommy Mars and Peter Wolf - during their stint with Frank Zappa, John McEntire of Tortoise/the Sea and Cake, Allen Ravenstine and Robert Wheeler of Pere UBU - on The Modern Dance (1977), Dub Housing (1978), New Picnic Time (1979) and their live album 360 Degrees of Simulated Stereo, Chris Stubbs of The Mometers,

[Let us know if you have any further additions to this list.]

. . . . .
