Moog Synthesizer 12

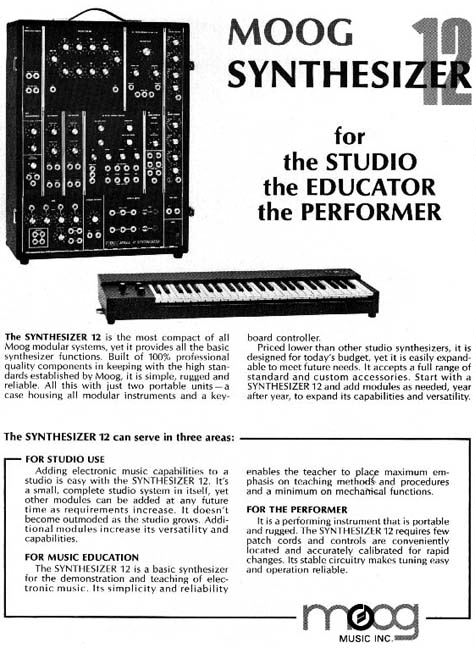

image from Moog's Synthesizer 12 promotional brochure, courtesy of Kevin Lightner

Also: Moog 3P, Moog 12, Custom Moog 12, Moog 15, Moog 35, Moog 55, Moog 55 brochure, a smaller Moog Modular, Mark Isham's Moog Modular, great picture of a large Moog Modular, another large Moog Modular, Vladimir Ussachevasky's early Moog Modular

"The Synthesizer 12 is the most compact of all Moog modular systems, yet it provides all the basic synthesizer functions."----[from Moog's Synthesizer 12 promotional brochure]

The Synthesizer 12 system consisted of a 49-note (C-C) duophonic keyboard and these modules:
  • (3) VCOs - (1) 921, (2) 921B, and a 921A driver
  • (1) 902 VCA
  • (1) 903A white noise generator
  • (1) 904A VCF
  • (1) 907 fixed filter bank
  • (1) 910 power supply
  • (2) 911 ADSR envelope generators
  • (2) 952 49-note duophonic keyboard
  • (1) console panel #11, with four-input mixer, multiples, attenuator, 2 control voltage and trigger outs, and two audio outputs

[from The A-Z of Analogue Synthesizers, by Peter Forrest, published by Susurreal Publishing, Devon, England, copyright 1994 Peter Forrest]

. . . . .
