CS-40M

. . .
. Manufacturer:
Yamaha

Model:
CS-40M

Production period:
Oct. 1979-86

Quantity produced:


Famous Fingers
Who played this instrument?

.
. . .

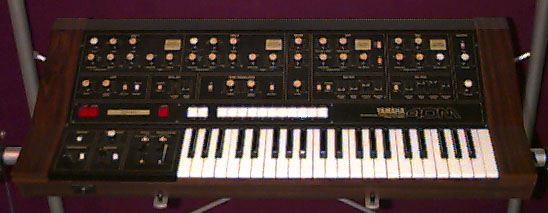

Yamaha CS-40M

above photo from the collection of Joseph Rivers, Audio Playground, Orlando, FL

other synths in the Audio Playground Collection

The CS-40M is a duophonic (2-voice) analog synthesizer with a 44-note 3 1/2 octave (F-C) keyboard and 2 banks of 10 patches that are backed up via a tape interface. It is housed in a wood-finished cabinet with a metal faceplate. All in all, it has 36 knobs, 16 switches, 16 buttons, 12 sliders and 2 wheels. The CS-40M's voice architecture consists of two VCOs, a noise generator, one LFO, two envelope generators (one for the VCA and one for the VCF), and a VCA. Each VCO (Voltage Controlled Oscillator) has a knob to switch between a 6 octave range and another knob for fine tuning. A mixer section adjusts the levels of VCO1 and VCO2. Waveforms are switchable between triangle, sawtooth, and square (pulse). The LFO (Low Frequency Oscillator) is switchable between sine, up-ramp, down-ramp, square, and sample-and-hold. It can easily modulate up into the audio frequencies. The EG-VCO (the envelope generator for the VCO) is a simple AR (Attack Release) envelope. the EG-VCF (the envelope used for the VCF and VCA) is an ADSR (Attack Decay Sustain Release) envelope. The VCF (Voltage Controlled Filter) is a multimode filter, switchable between LP, BP, and HP, with a control for cutoff frequency and resonance (none oscillating). A switch enables and disables the keyboard tracking. The Pitch Wheel is switchable between intervals of a 3rd and a 5th, and the Modulation Wheel has switches to select the VCO and the VCF. There are separate CV(control voltage)/Trigger outputs for each voice and CV inputs for portamento, sustain, brilliance, volume and filter. The CS-40M has high, low, and balanced outputs.



Famous Fingers
Who Played This Instrument?

Electronic Dream Planet, Chris Greene of the Atrix, Masabumi Kikuchi, Nick Rhodes of Duran Duran, Vangelis

[Let us know if you have any further additions to this list.]

. . . . .
